TMMN3510-25 T-Motor MN3510-25 360KV Navigator Series Brushless Motor
Â

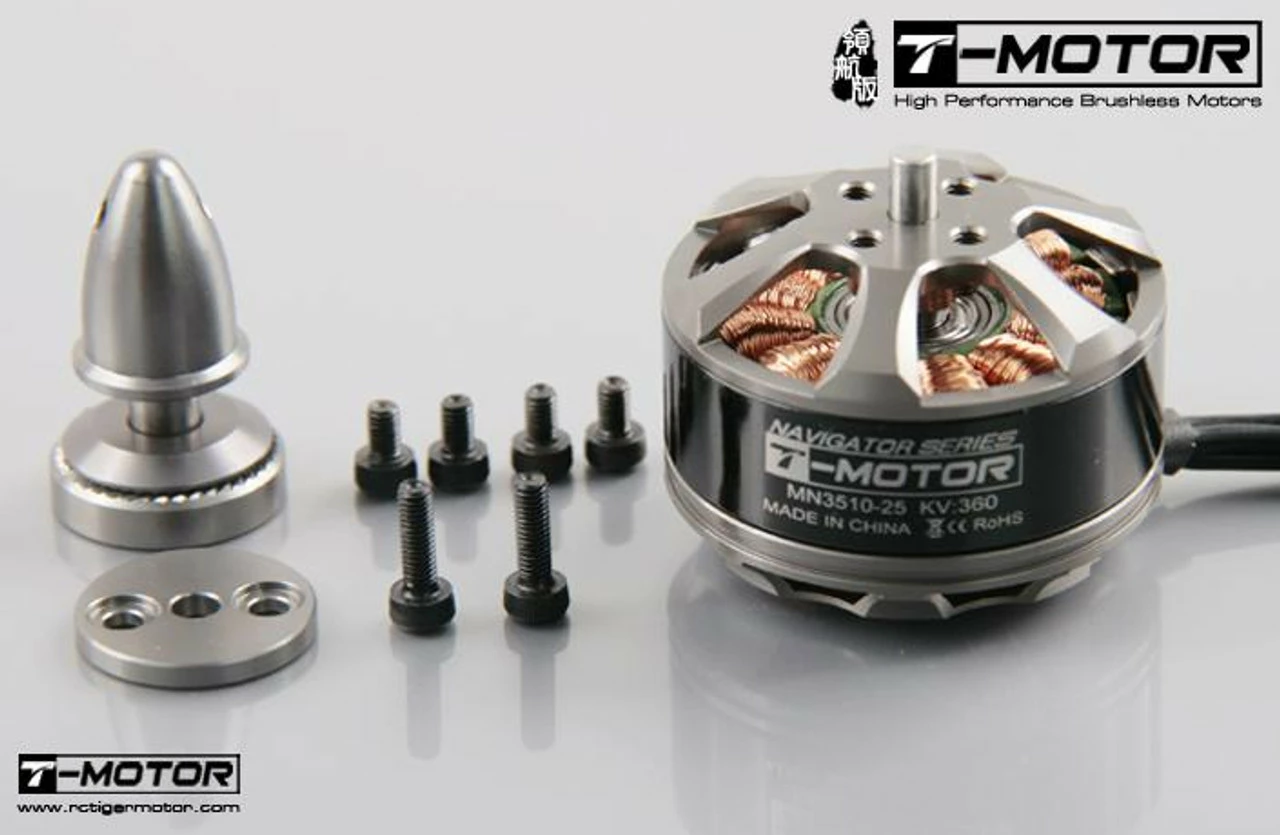

T-Motor MN3510-25 360KV Navigator Series Brushless Motor
Technical Specifications:
Configuration: 12 magnets 14 poles
Stator: 35mm OD 10mm lamination length
Shaft: 4mm
Outer dimensions: 41.8Ø *28.5mm
Weight: mass 97g – (119g with wires)
Idle current claimed: 0.4amps @10v
Suitable for 3-6S
Max Continious: 15Amps  @ 330watt
Max efficiency: 2->8amps >85%
Internal resistance: 0.188 ohms
| Motor Kv: | 500Kv or Less |
|---|---|
| Motor ESC Amps: | 15 to 34A |
| Motor Voltage: | 22.2 to 29.5V |
| Motors: | Motor |
