TMMN3508-29 T-Motor MN3508-29 380KV Navigator Series Brushless Motor
Â

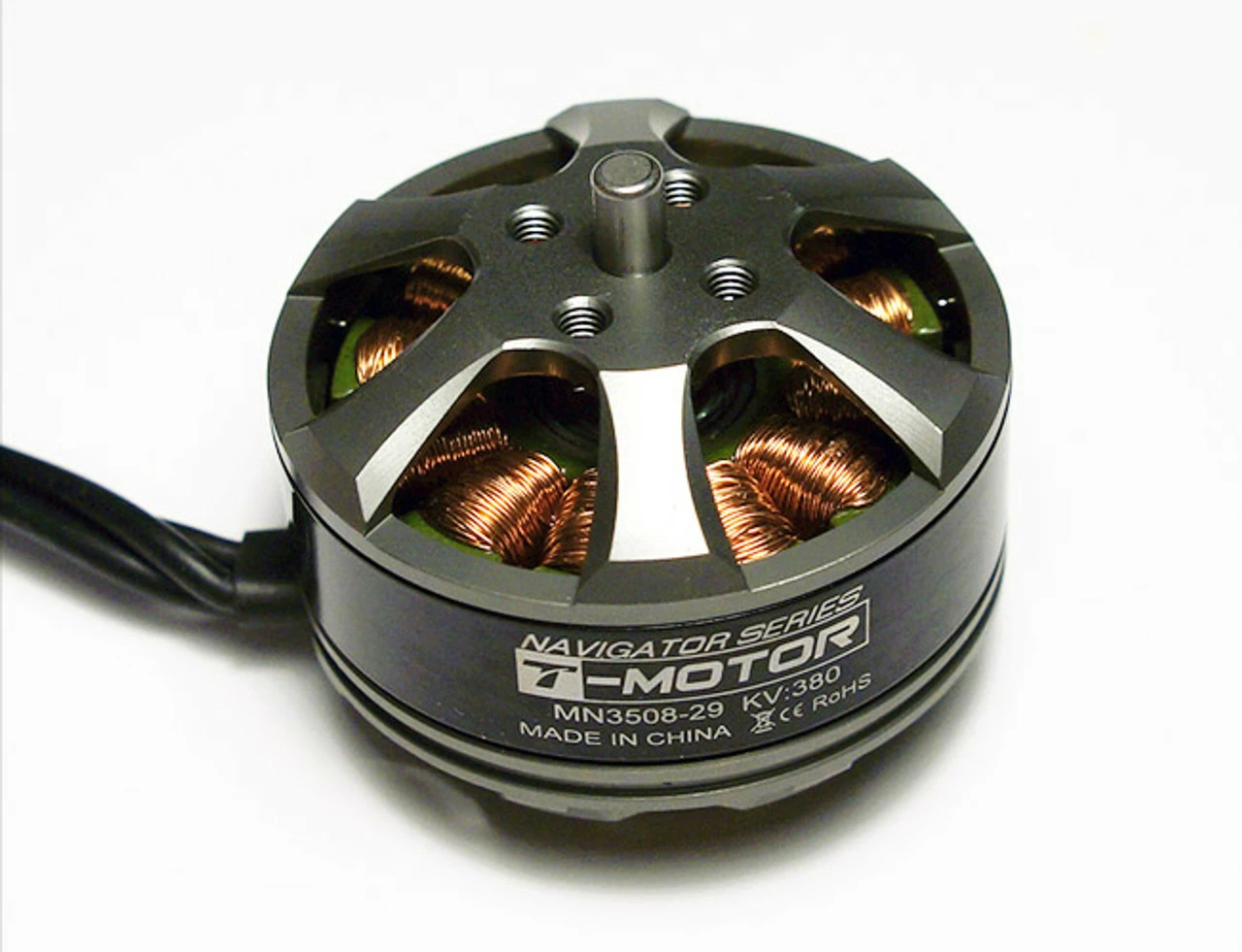

T-Motor MN3508-29 380KV Navigator Series Brushless Motor
Technical Specifications:
KV:380
Configuration…………………………………………………………………………12N14P
Stator Diameter…………………………………………………………………………35mm
Stator Length………………………………………………………………………………8mm
Shaft Diameter……………………………………………………………………………4mm
Motor Dimensions(Dia.*Len)…………………………………….Φ41.8×26.5mm
Weight (g)……………………………………………………………………………………..82g
ldle current(10)@10v(A)………………………………………………………….. …0.4A
No.of Cells(Lipo)…………………………………………………………………………3-6S
Max Continuous current(A)180S…………………………………………………..14A
Max Continuous Power(W)180S……………………………………………….310W
Max. efficiency current……………………………………………………….(2-7A)>84%
internal resistance………………………………………………………………….205mΩ
internal resistance………………………………………………………………….205mΩ
| Motor Kv: | 500Kv or Less |
|---|---|
| Motor ESC Amps: | 14A or Less |
| Motor Voltage: | 22.2 to 29.5V |
| Motors: | Motor |
