TMMN3508-20 T-Motor MN3508-20 580KV Navigator Series Brushless Motor
Â

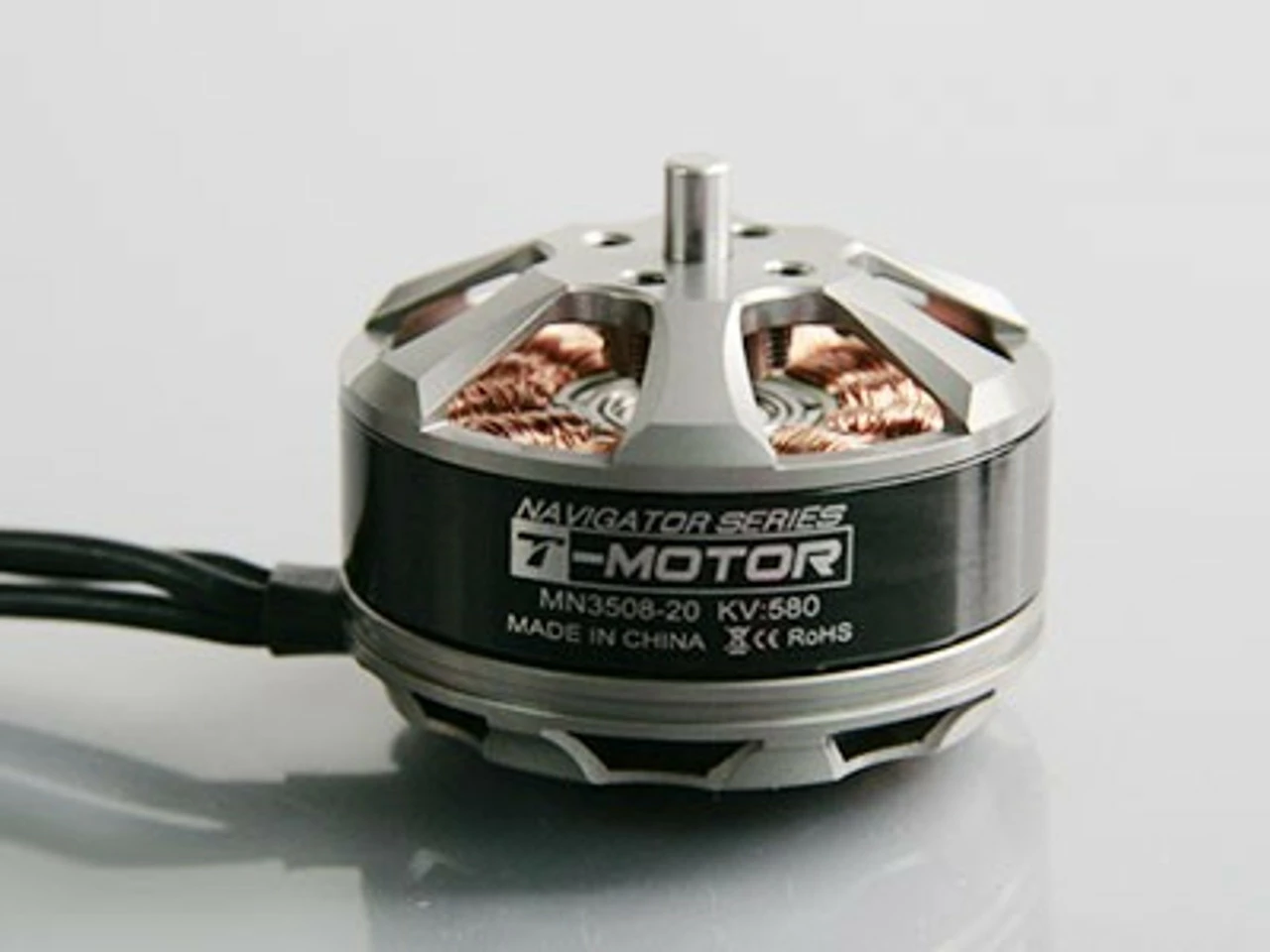

T-Motor MN3508-20 580KV Navigator Series Brushless Motor
Technical Specifications:
KV……………………………………………………………………………………………….580
Configu ration……………………………………………………………………..12N14P
Stator Diameter……………………………………………………………………..35mm
Stator Length……………………………………………………………………………8mm
Shaft Diameter…………………………………………………………………………4mm
Motor Dimensions (Dia.*Len)…………………………………Φ41.8×26.5mm
Weight (g)…………………………………………………………………………………..82g
ldle current(10)@10v(A)…………………………………………………………….0.4A
No.of Cells(Lipo)……………………………………………………………………….3-4S
Max Continuous current(A)180S…………………………………………………18A
Max Continuous Power(W)180S……………………………………………..400W
Max. efficiency current……………………………………………………..(3-9A)>82%
internal resistance…………………………………………………………………110mΩ
| Motor Kv: | 501 to 1,000Kv |
|---|---|
| Motor ESC Amps: | 15 to 34A |
| Motor Voltage: | 14.8 to 22.1V |
| Motors: | Motor |
