TMMN2206-13 T-Motor MN2206-13 2000KV Navigator Series Brushless Motor
Â

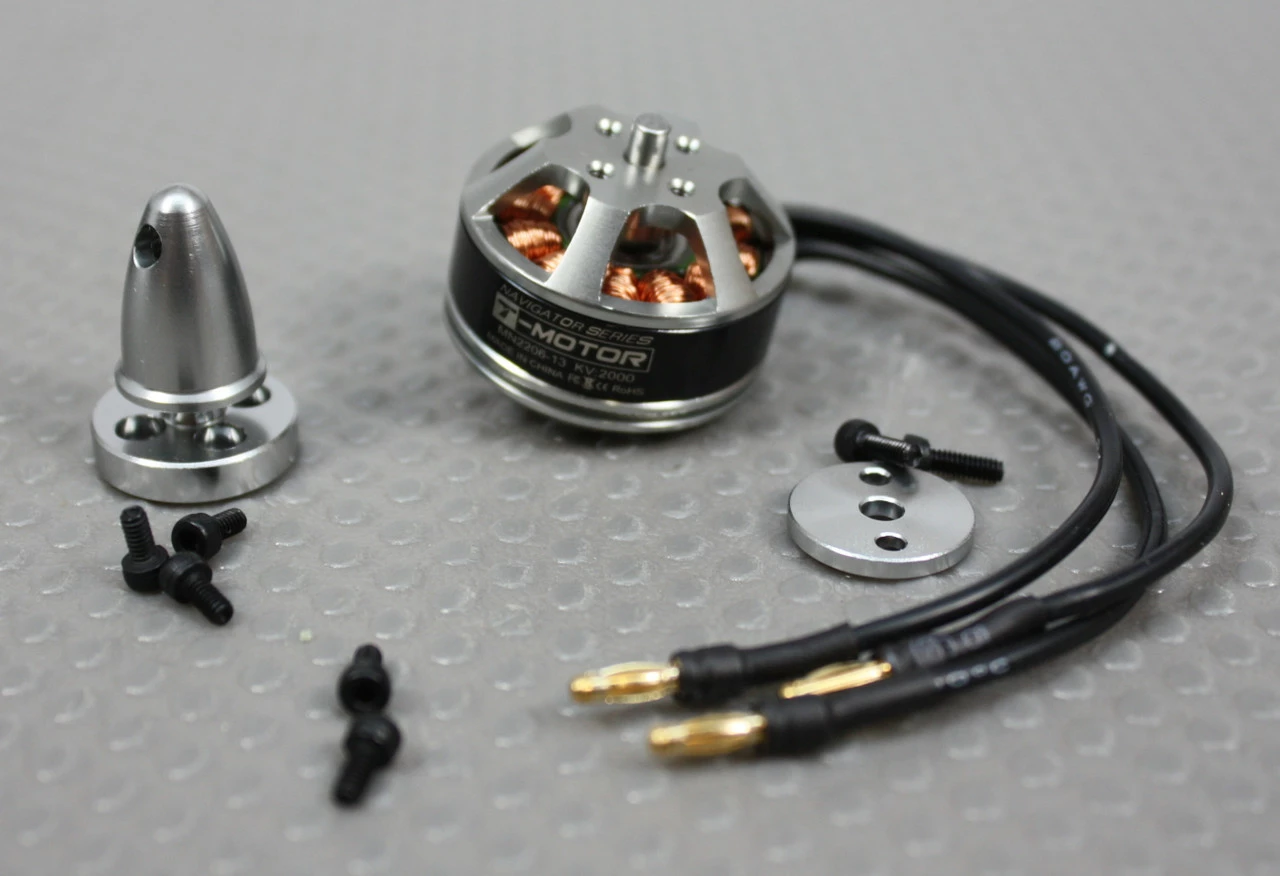

T-Motor MN2206-13 2000KV Navigator Series Brushless Motor
Technical Specifications:
KV: 2000
Configuration: 12N14P
Stator Diameter: 22mm
Stator Length: 6mm
Shaft Diameter: 3mm
Motor Dimensions(Dia.*Len): Φ27×18.5mm
Weight(g): 30g
ldle current(10)@10v(A): 0.3A
No.of Cells(Lipo): 2-3S
Max Continuous current(A)180S: 18A
Max Continuous Power(W)180S: 180W
Max. efficiency current: (2-5A)>80%
internal resistance: 82mΩ
| Motor Kv: | 1,001 to 2,000Kv |
|---|---|
| Motor ESC Amps: | 15 to 34A |
| Motor Voltage: | 7.4 to 14.7V |
| Motors: | Motor |
