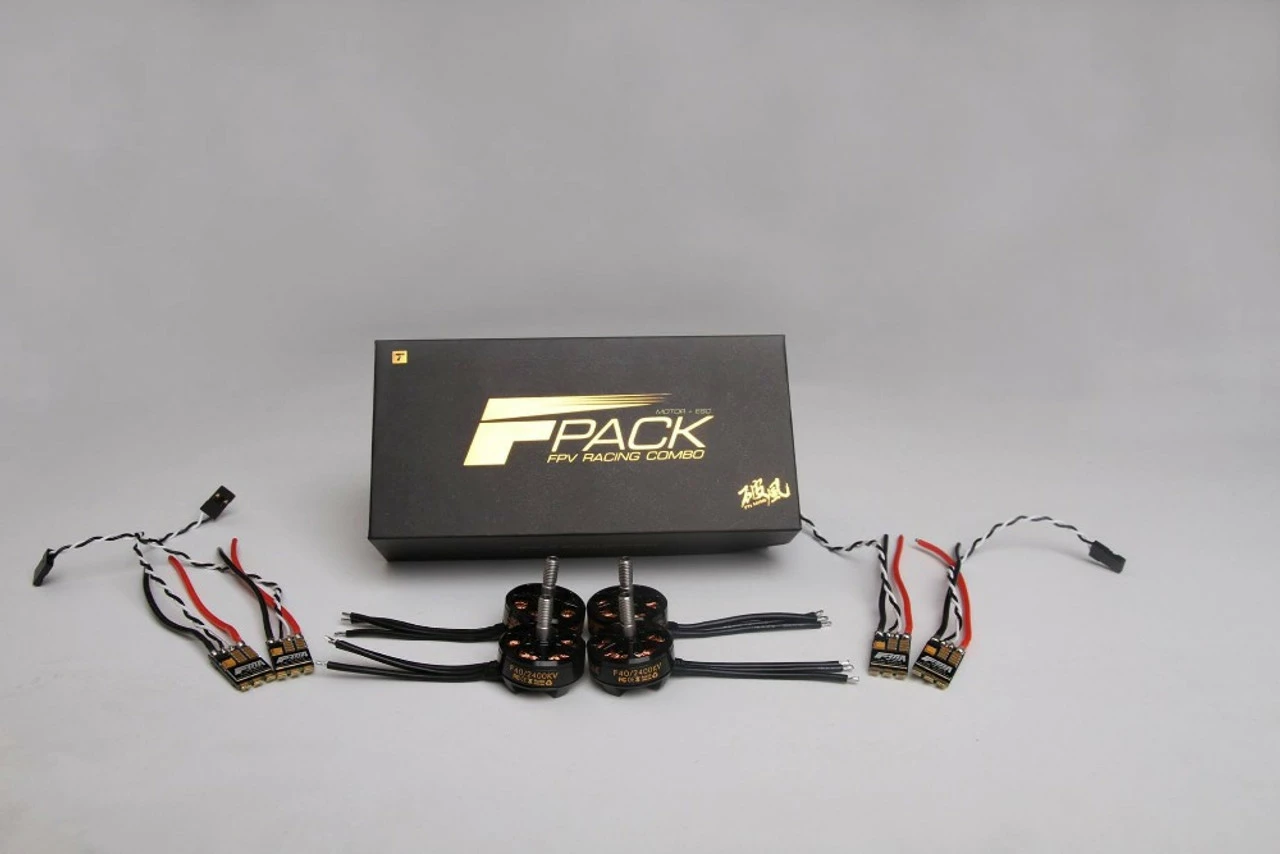

TIGER MOTOR TMFPACK2400KV T-MOTOR F-PACK F40II 2400KV + DSHOT F30A ESC COMBO SET

TMFPACK2400KV T-MOTOR F-PACK F40II 2400KV + DSHOT F30A ESC COMBO SET



Features:

• Holistic design of motor top cover reduces possibility of impact deformation
• Grooves increase friction between prop and motor, thus increase reliability and stability
• 25% more heat reduction due to more air inlets on the bottom cover
• Sunk design for circlip and shaft makes it versatile and easier for installation
• Use of big bearing ensures the stability and crash resistance
• High Performance MPS half bridge driver chip endues ESCs with terrific response speed and efficiency
• State of the art MOSFET with low internal resistance brings the temperature down and ensures safety and reliability of the ESC

Includes:

F40II 2400KV Motor x 2CW + 2 CCW
F30A Dshot ESC x 4
Locking Nuts
Screws



Motor Specifications:

KV : 2400kv
Stator Diameter : 23mm
Stator Length : 5mm
Shaft Diameter : 4mm
Motor Dimensions(Dia. x Len) : Φ28.4 x 31mm
Weight (g) : 27.6g (Cable Excluded)
ldle current(10)@10v(A) : 1.2A
No.of Cells(Lipo) : 3-4S
Cable length : 60mm

ESC Specifications:

Continuous current: 30A
Burst current: 40A
Lipo (cell): 2-4S
Weight wires included: 4.3g
Dimension LxWxH(mm): 25.5*12.7*5
BEC: No
