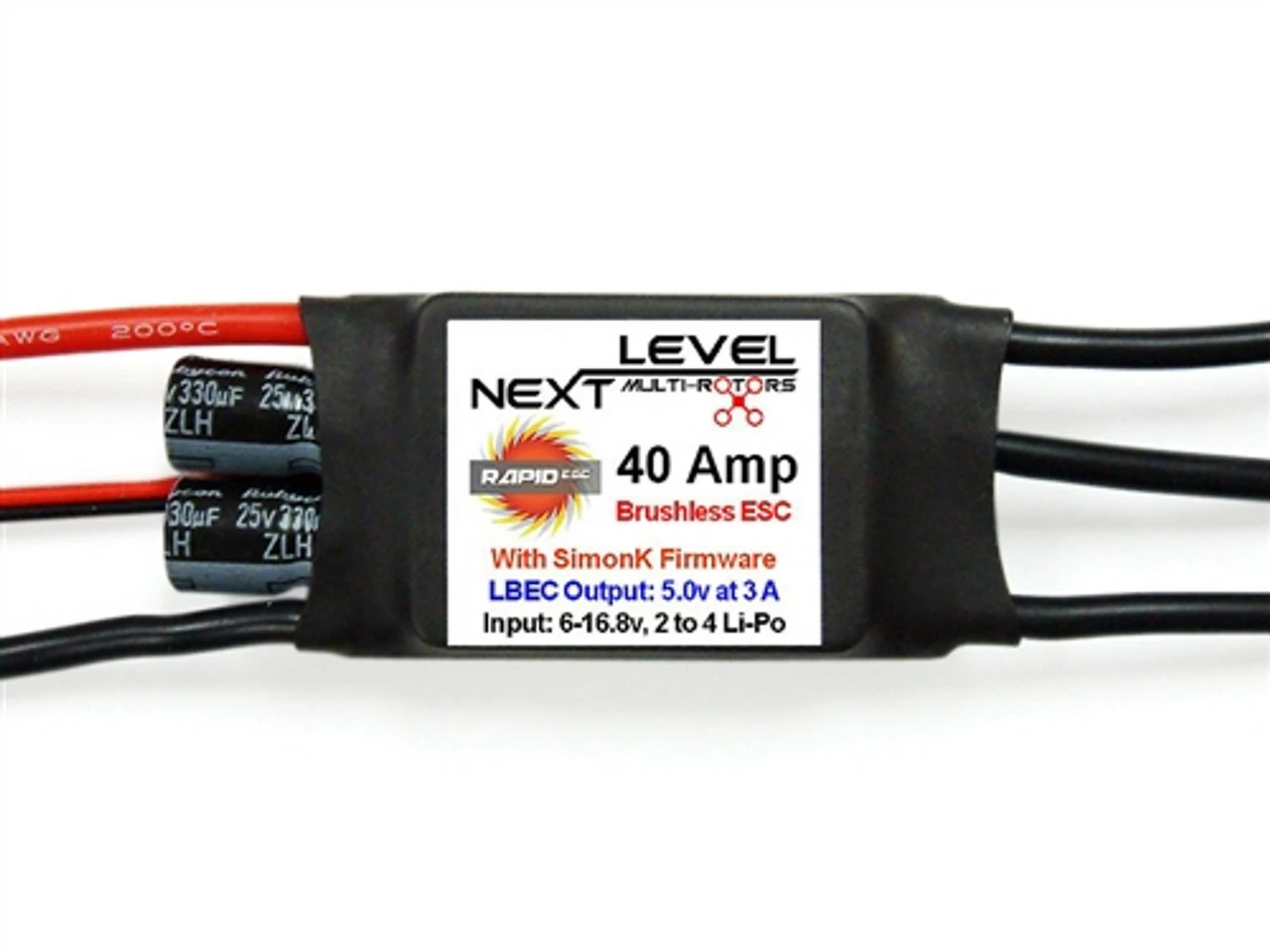

INDNL-ESC-40SK Next Level 40 Amp Multi-Rotor ESC With SimonK Firmware

INDNL-ESC-40SK Next Level 40 Amp Multi-Rotor ESC with SimonK Firmware



Next Level 40 Amp Multi-Rotor ESC with SimonK Firmware

Features:

• Extremely low output resistance for efficient operation
• 3-stage protection: Low Voltage Cutoff, Over-Heat Protection & Signal Loss
• 3 Start Modes available: Normal, Soft and Very Soft
• Adjustable Throttle Endpoints to match virtually all transmitter models
• Smooth linear throttle operation for precise control
• High RPM capability: 210,000 (2-pole), 70,000 (6-pole), 30,000 (14 pole)

Specifications:

Input Voltage ………………… 6-16.8 VDC, 2-4 Li-Po cells
Output Current ………………. 40 Amps Continuous, 45 Amps Burst (10 Sec.)
LBEC Output ………………….. 5.0 Volts at 3 Amps
Dimensions …………………… 56 x 26 x 14 mm, 2.20 x 1.02 x 0.55 inches
Weight …………………………. 35.3 grams, 1.25 ounces
