INDNL-500QHPCC Next Level 500mm Quad, Hi-Power Combo With Cobra Motors

INDNL-500QHPCC Next Level 500mm Quad, Hi-Power Combo with Cobra Motors



Next Level 500mm Quad, Hi-Power Combo with Cobra Motors

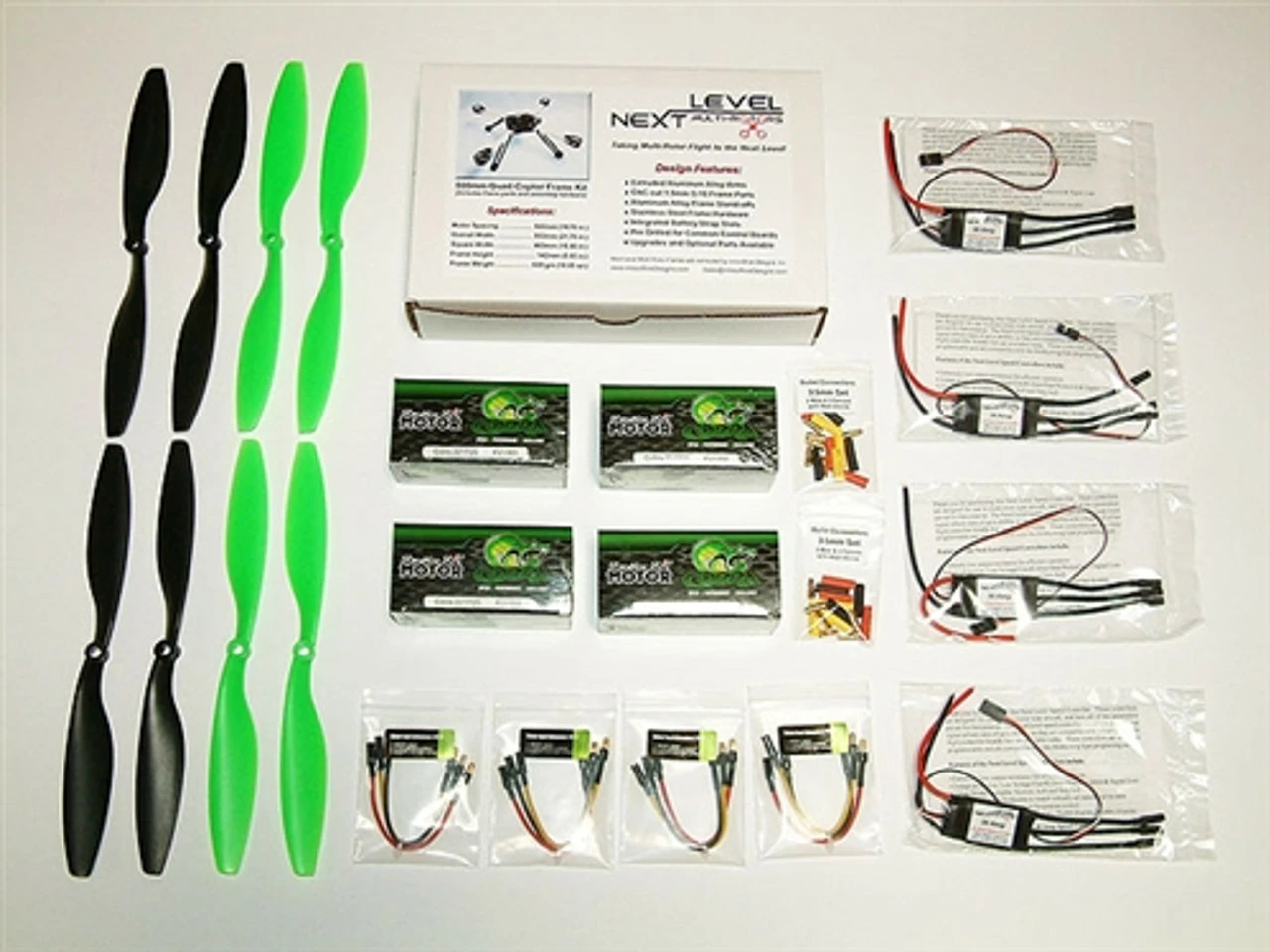

Includes:

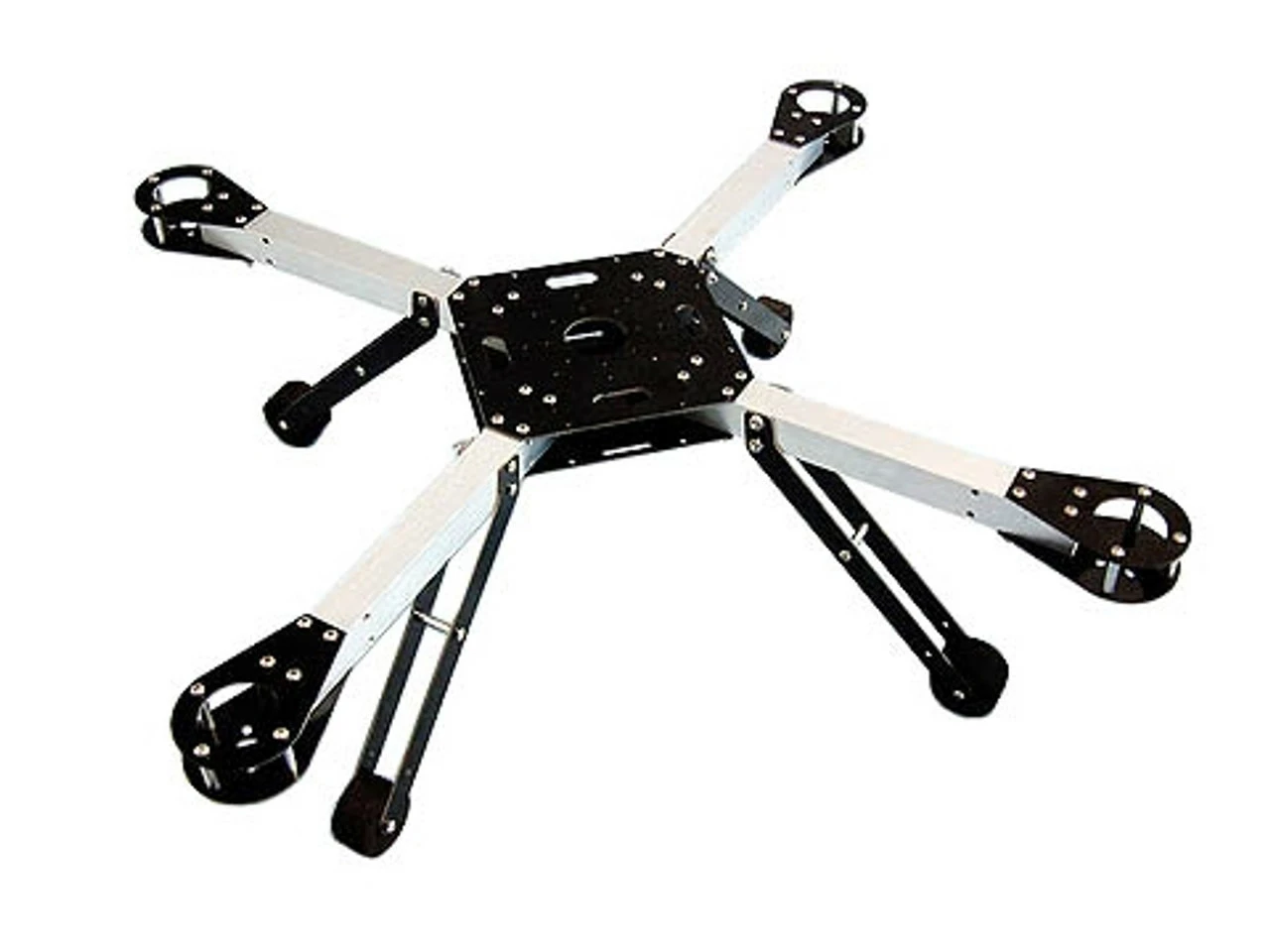

1 – Next Level 500mm Quad Rotor Frame Kit
4 – Cobra 2217/20 Brushless Motors, 960 Kv
4 – Next Level 30 Amp Speed Controllers with SimonK Firmware
4 – Cobra 100mm Motor Lead Extension Kits
2 – GemFan 10×4.5 Green Multi-Rotor Props
2 – GemFan 10×4.5R Green Multi-Rotor Props
2 – GemFan 10×4.5 Black Multi-Rotor Props
2 – GemFan 10×4.5R Black Multi-Rotor Props
2 – Sets of 3.5mm Bullet Connectors

With a 3-cell Li-Po battery pack, at 11.1 volts under load, the Cobra 2217/20 motor turning GemFan 10×4.5 props will produce the following performance numbers at full throttle:

Amps – 14.6
Watts – 162
RPM – 7,180
Thrust – 941 grams, 33.2 ounces
Pitch Speed – 30.6 MPH

Four of these motors together will produce a total of 3764 grams or 132.8 ounces of combined thrust at full throttle.
When assembled, this combo kit will weigh 40 ounces without a receiver or flight controller board.
Depending on the flight controller board and receiver you use, the ready to fly weight with a 3-cell 3300mah battery pack will be in the 50 to 52 ounce range, and with a 3-cell 5000mah battery it will be in the 54 to 56 ounce range.

To maintain good maneuverability and performance, we recommend that the maximum flying weight of this setup should be no more than 60% of the total available thrust.
For this power system, that would be 80 ounces maximum take-off weight.
