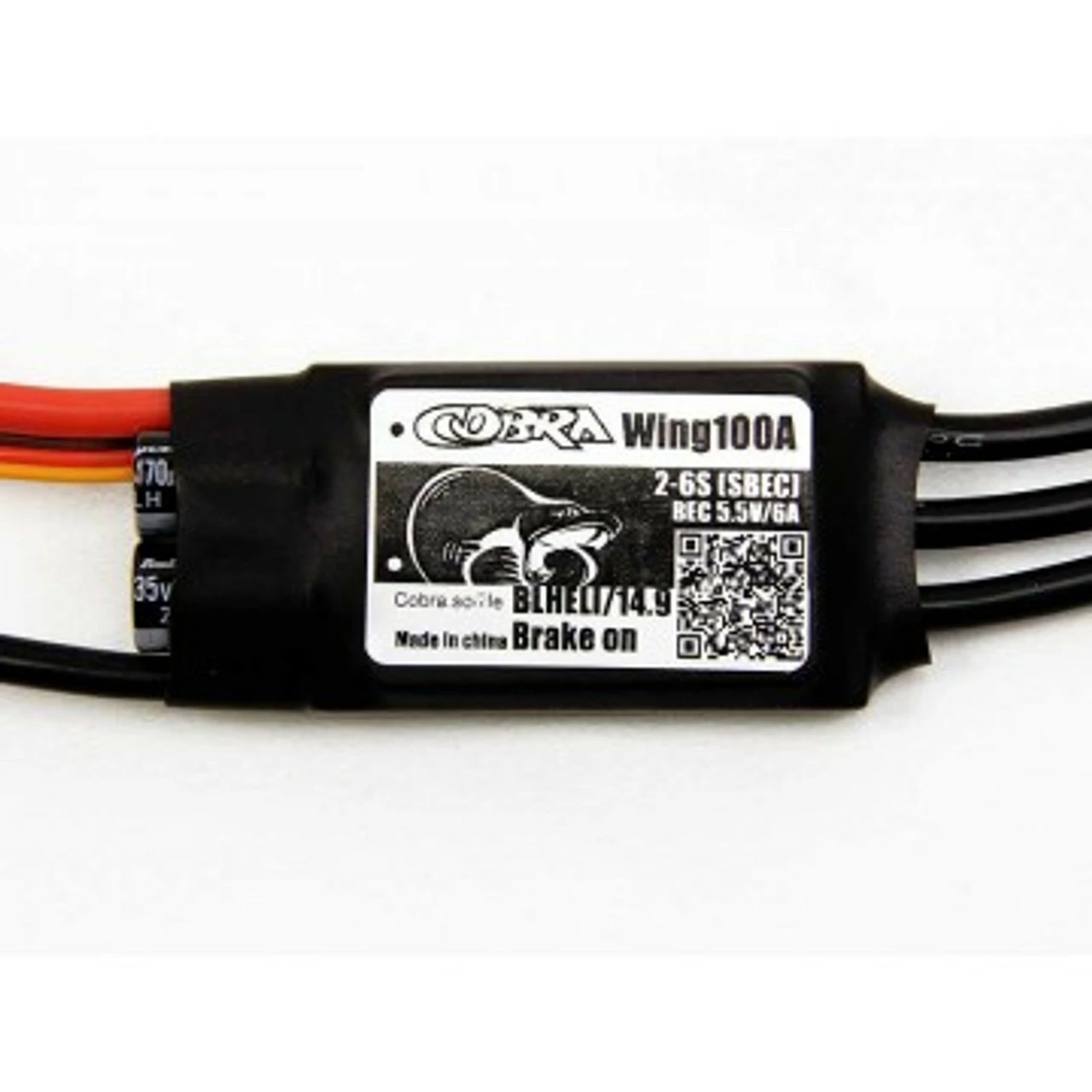

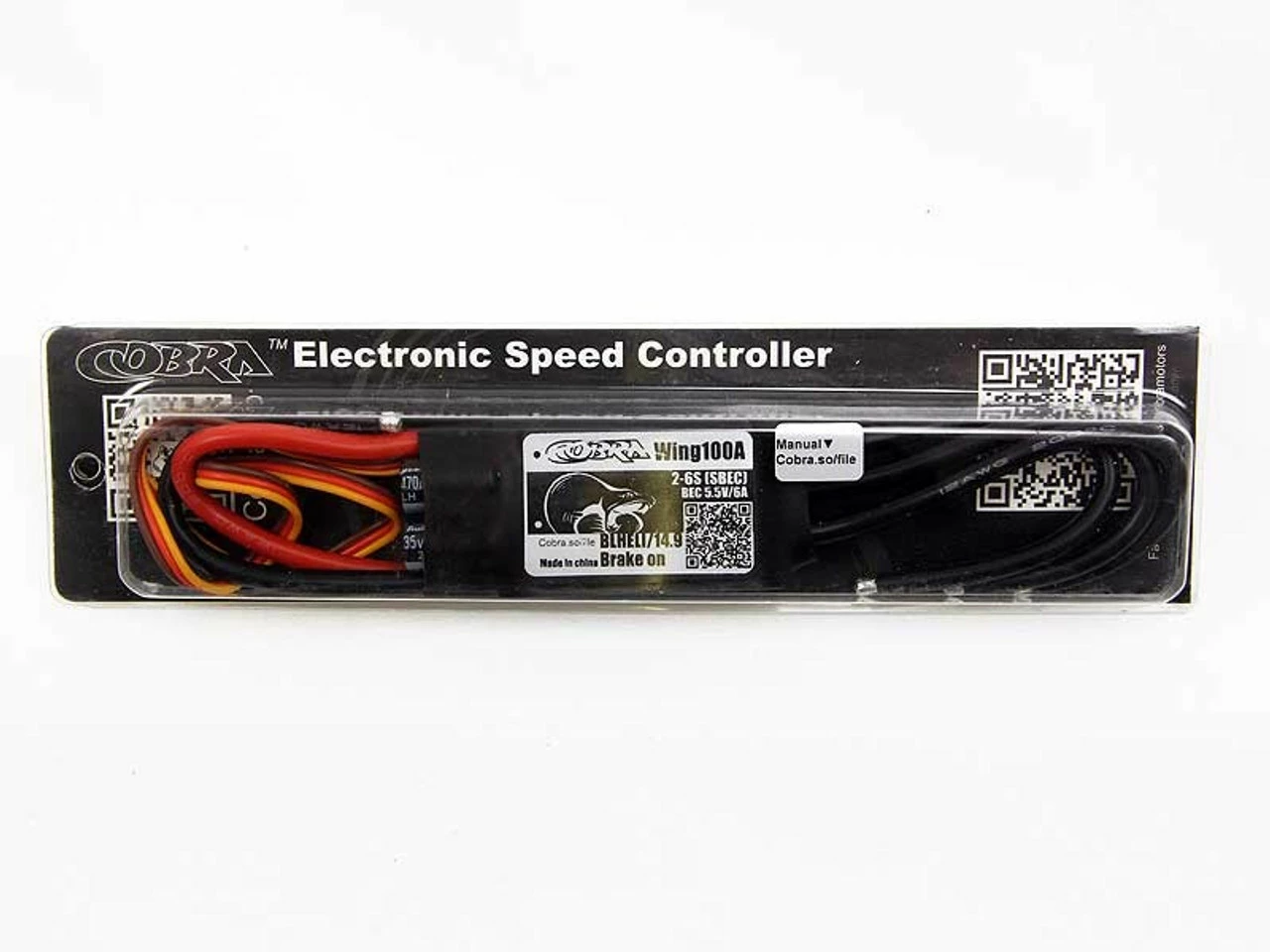

INDC-100A-WING Cobra 100A FPV Wing ESC With 6A Switching BEC

INDC-100A-WING Cobra 100A FPV Wing ESC with 6A Switching BEC



Cobra Speed Controllers are designed with a relentless pursuit of exceptional product quality. These speed controllers are the perfect compliment to a Cobra Brushless motor, and they will also work with virtually any other brushless motor on the market as well. Cobra Speed Controllers are built from the best components available to provide the user with long life and trouble-free operation.

The new Cobra FPV Wing Series ESC’s are designed for the new FPV Racing Wings that utilize high-RPM motors. These ESC’s feature the latest BL-Heli firmware that stays in sync with motors running up over 40,000 RPM.

The 100 Amp Wing model ESC includes a built-in 5.5 volt switching BEC rated for 6 amps of current to handle the power needs of the larger digital servos.

The input leads on the speed controller are pre-tinned, and ready to solder on the battery connector of your choice. The output leads have a set of 3.5mm female bullet connectors already soldered on.

Cobra 100 Amp Wing ESC Specifications
Weight (With Ouput Connectors)	74.5 grams (2.63 oz)
Max Continuous Current	100 Amps
Burst Current rating (15s)	125 Amps
Operating Voltage Range	6 to 26 Volts
Number of Li-Po cells	2 to 6 cells
Number of Ni-XX cells	6 to 20 cells
Number of Li-Fe cells	2 to 7 cells
Switching BEC Output	6 amps @ 5.5 Volts
ESC Size (Inc. Caps, in mm)	68 x 33 x 14
ESC Size (Inc. Caps, in inches)	2.68 x 1.30 x 0.55
