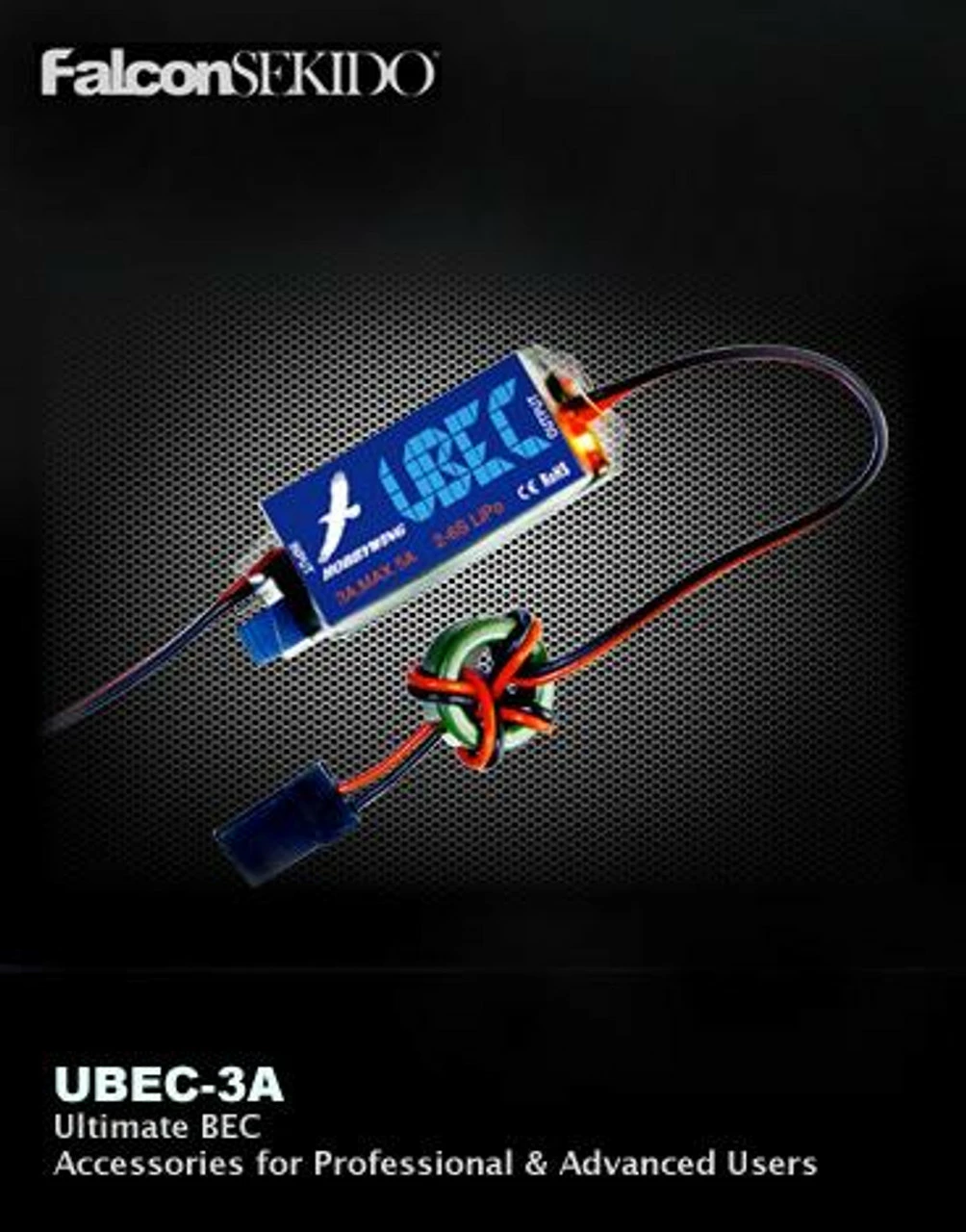

HBW86010010 HOBBYWING UBEC 3A (2-6S Lipo Input)

1.1 Output Voltage: 5V@3A or 6V@3A (Changeable with an output-voltage select switch )

1.2 Continuous output current: 3 Amps

1.3 Input: 5.5V-26V (2-6 cells lithium battery pack or 5-18 cells NiMH /NiCd battery)

1.4 Size: 43mm*17mm*7mm (L*W*H)

1.7 Weight: 11g





2.1 Designed with an advanced switch mode DC-DC regulator IC.

2.2 The output is powerful even working with 4 to 6 cells Lipo battery.

2.3 Battery polarity reversal protection.

2.4 A metal shield covers almost all the electronic components, and a specially made filter is attached with the output wires to significantly reduce the electromagnetic interference.

2.5 The working status is shown by an indicator (LED), lights when the output is in normal range.
