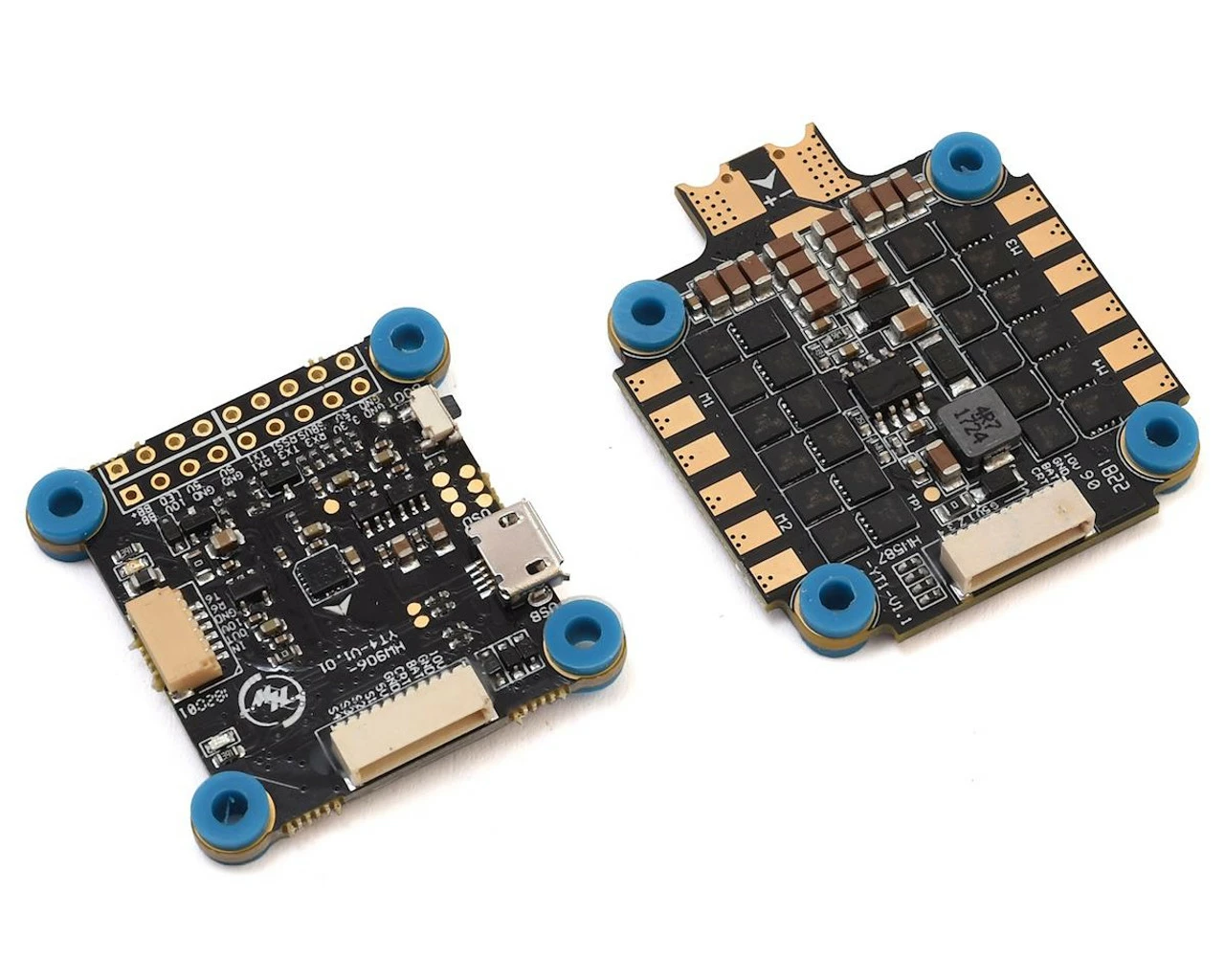

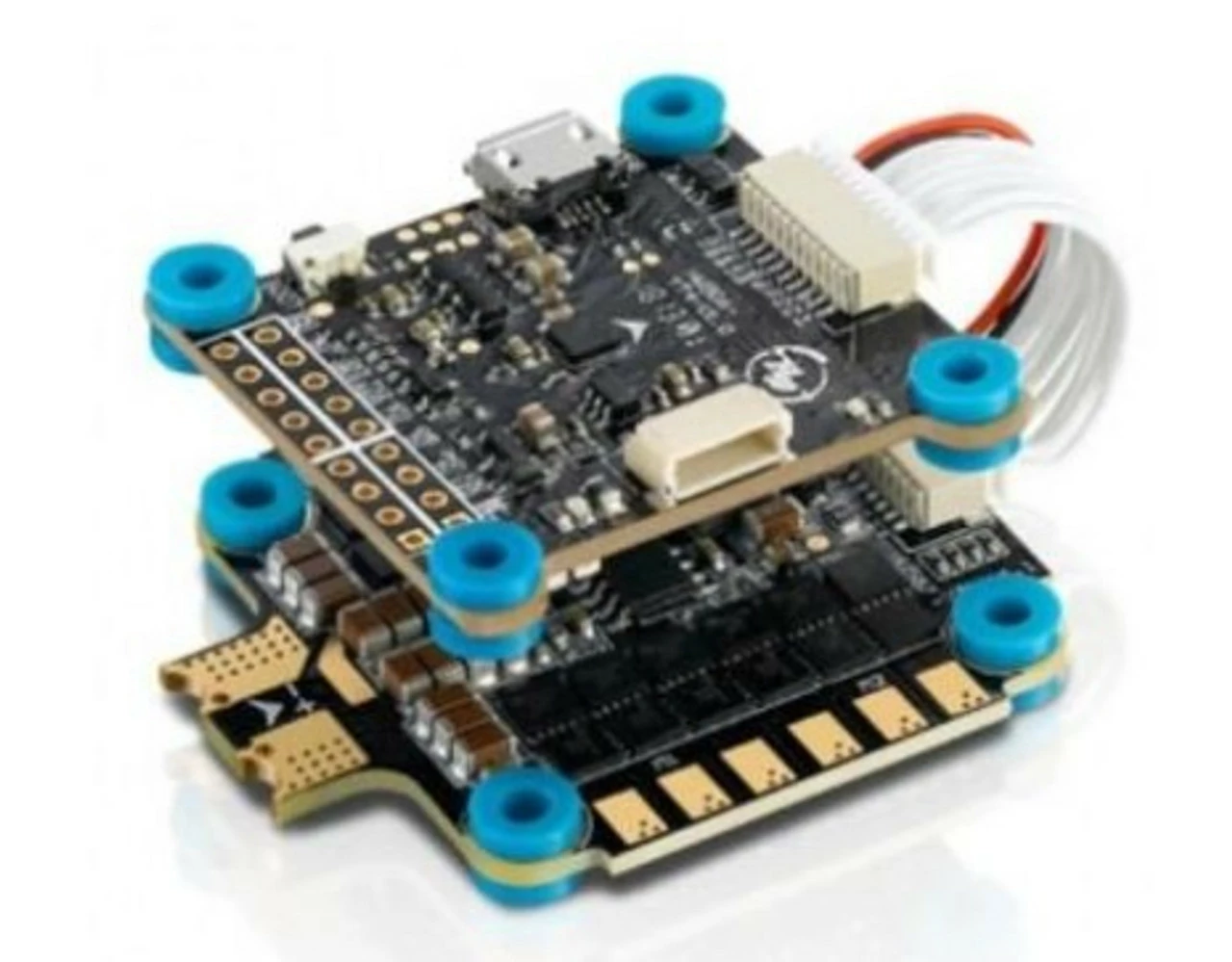

HBW38040300 Hobbywing XRotor Micro 4in1 ESC & Flight Controller Combo

HBW38040300 Hobbywing XRotor Micro 4in1 ESC & Flight Controller Combo



The Hobbywing 4-in-1 XRotor Micro 45A ESC is highly integrated with the latest features & hardware designs, as well as incredibly compact. Featuring 45A (x4) ESCs, BLHeli_32 DShot 1200 support, two built in BECs (5V & 10V), and a voltmeter module that allows the flight controller to monitor battery voltage & amperage in real time.

Innovative shock-absorbing structure allows the ESC to utilize rubber grommets for mounting, as well as connection via a soft silicone cable (best connectivity is in conjunction with the Micro F4 G2 Flight Controller). These small touches aid in reducing vibrations to the flight controller.

3rd Generation BLHeli_32 features incredible performance & rich functions that supports adjusting parameters or upgrading firmware via different methods. Supports up to DShot 1200.

Specifications:

Continuous Current: 45A
Input Voltage: 3s-6s LiPo
BEC Output: 5V 1.5A & 10V @1.5A
Size (LxWxH): 32.7×18.4×6.2mm
Supported Firmware: BLHeli_S32
Weight: 11.5g

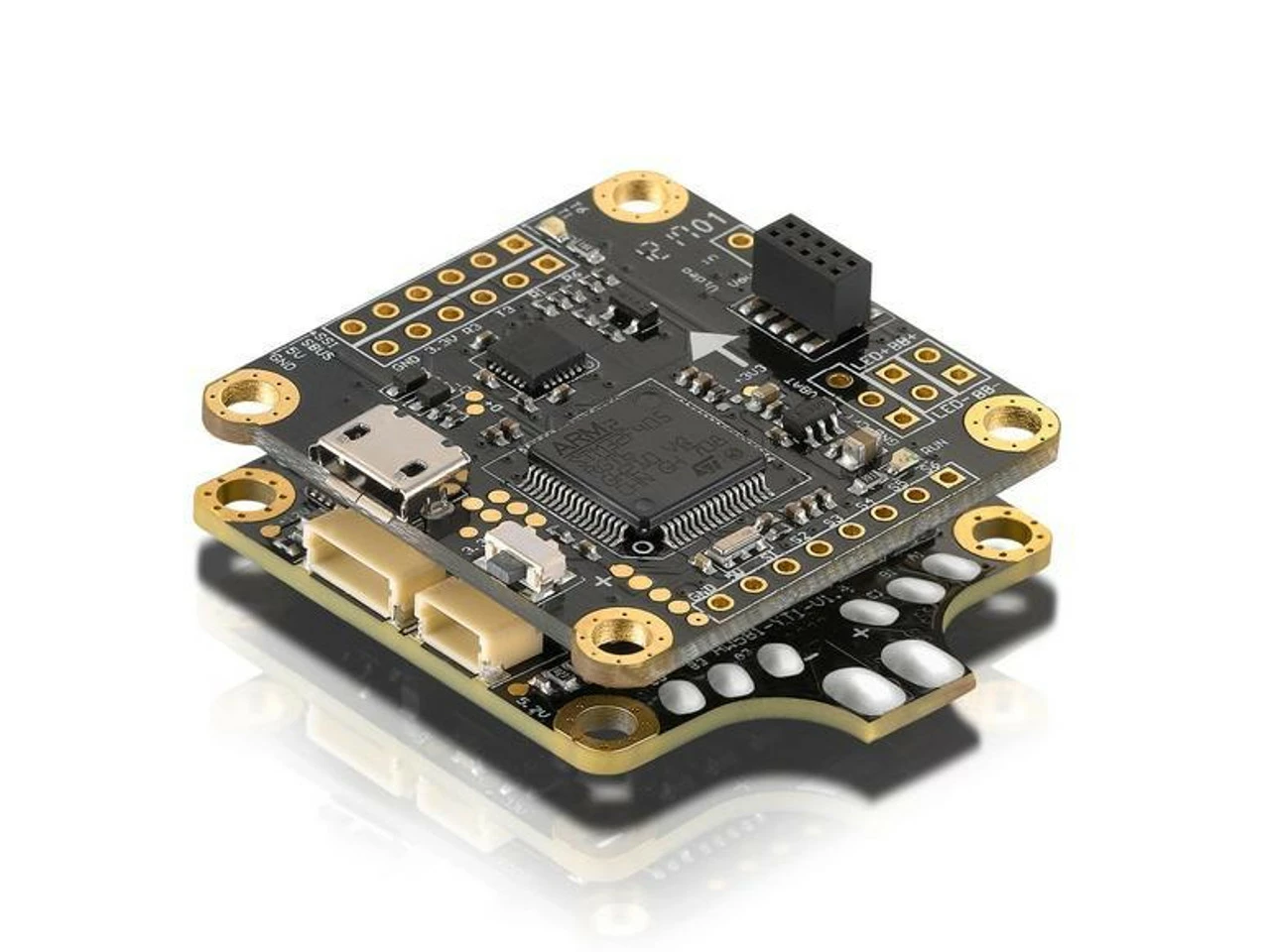

Powerful hardware for super fast operating speed! The XRotor Micro F4 G2 Flight Controller, w/OS. incorporates the STM32F405 MCU to provide powerful computing capacity and super operating speed! This power working in combination with the highly sensitive ICM20602 6-axis motion sensor, 32KHz PID controller and gyro equals incredible performance for FPV flight and racing. The built-in OSD chip allows users to easily set and adjust set OSD parameters via Betaflight/Cleanflight/Butterflight/invaflight software or transmitter while the internal TF-card expansion slot allows the use of an SD cars to record flight data.

 Features:

• STM32 F405 MCU
• SPI Sensor MPU6000
• Onboard OSD microchip (Supports the DMA mode) (Note: the OSD is controlled by the F4 MCU.)
• TF-card
• Compatible with SBUS, SUMH, SUMD, SPEKTRUM1024/2048, XBUS, PPM
• LED strip signal output port
• Volt/Amp monitoring port
• CRT port (extra current meter is needed).
• Buzzer output port
• Micro USB port

Specifications:

Firmware: OmnibusF4SD
MCU: STM32 F405 MCU
Compatible Modes: PWM, Oneshot125, Oneshot42, Multishot, DShot150, DShot300, DShot600,DShot1200
Compatible with: PPM, Spektrum, S.Bus, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
OSD Support: Built-in
Voltage Monitoring: Yes
Current Monitoring: Yes
Buzzer: Supported
LED Contol: Supported
TF-Card: 2-32Gb Suggested – NOT INCLUDED
Size: 35x35mm
Weight: 6g

Package Includes:

• (1) F4 Flight Controller
