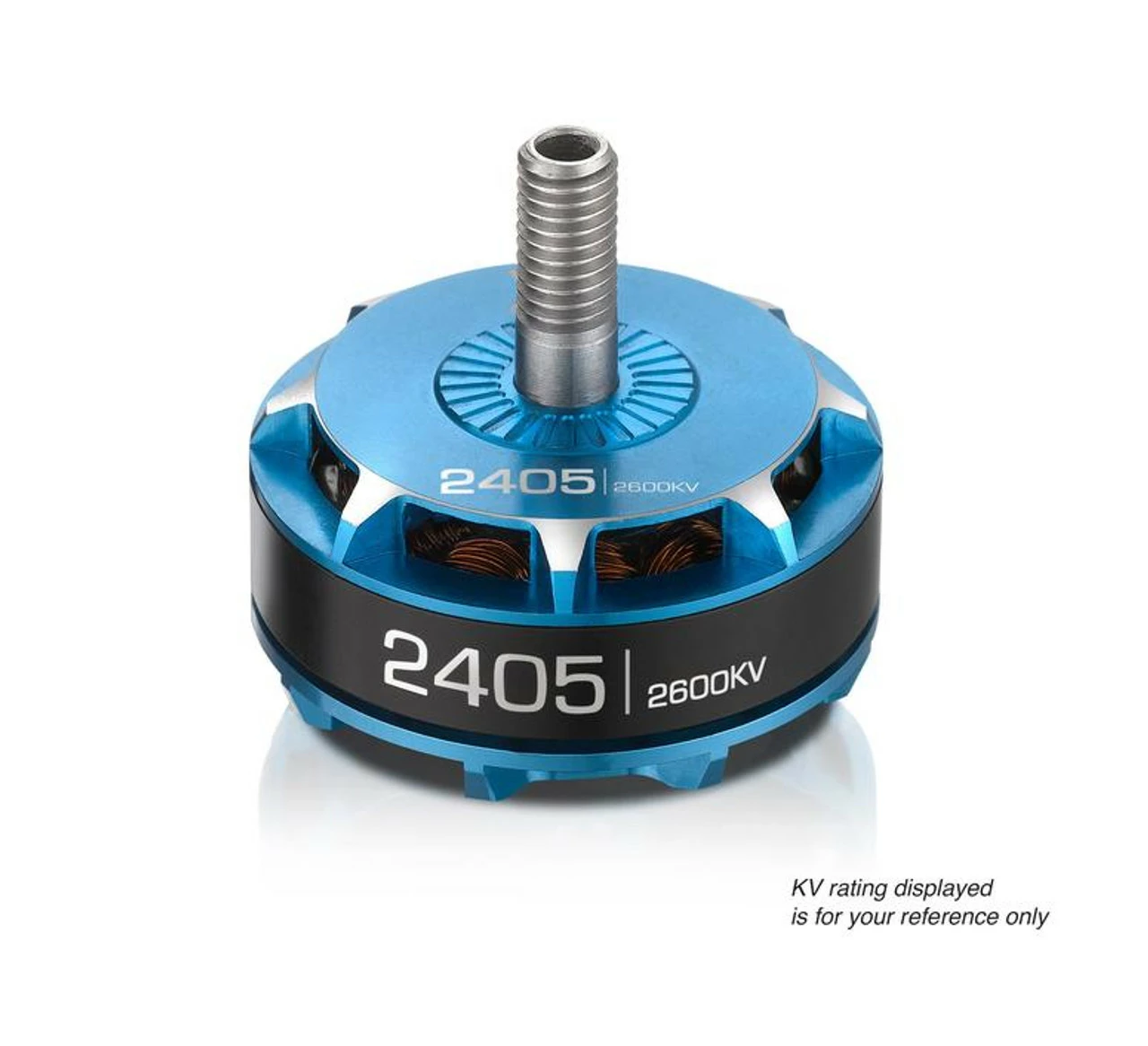

HBW30405406 HOBBYWING XRotor 2405 Motor For FPV Drone Racing

HOBBYWING XRotor 2405 motor for FPV Drone Racing



Xrotor 2450 brushless motor

• Super thin disc-type structure with a low center of gravity guarantees better control feel.
• Concave anti-skid teeth together with the lock-up screw at the bottom effectively prevent rotor
  from moving or losing and strengthens reliability of the motor.
• One-piece eight-bladed centrifugal fan greatly reduces the operating temperature of the motor.
• Super light weight
• Top Quality Components – Special 240℃ heat-resistant windings (after vacuum dip coating treatment) can stand high, surge current.
• N54 super magnets guarantee high torque output.
• Super thin (0.2mm) silicon sheets imported from Japan guarantee low (power) loss, less heat generation but high magnetic permeability.
• Dedicated 4mm bearings (the thickness is enlarged by 33% comparing to the regular 3mm bearings on the market) imported from Japan guarantee great load-bearing capacity and impact-resistance.

Specifications

• LiPo Cell: 4s
• Max Continuous Current / Power : 25A/420W
• Stator Diameter/Thickness: 24mm/5mm
• Slot/Plot Count: 12/14
• Motor/Shaft Diameter: 30.8mm/5mm
• Motor Length (w/o, w/ Shaft): 15.9mm/29.4mm
• Best match w/ Xrotor Micro 40A BLHeli-S Dshot600 or above
• Weight: 35.5g

P/N	30405406
KV	1800
No-Load Current(A/10V)	1.2A
Motor Resistance	0.062Ω
Recommend Prop. type	5045 3-bladed Prop. 6040 2-bladed Prop.
