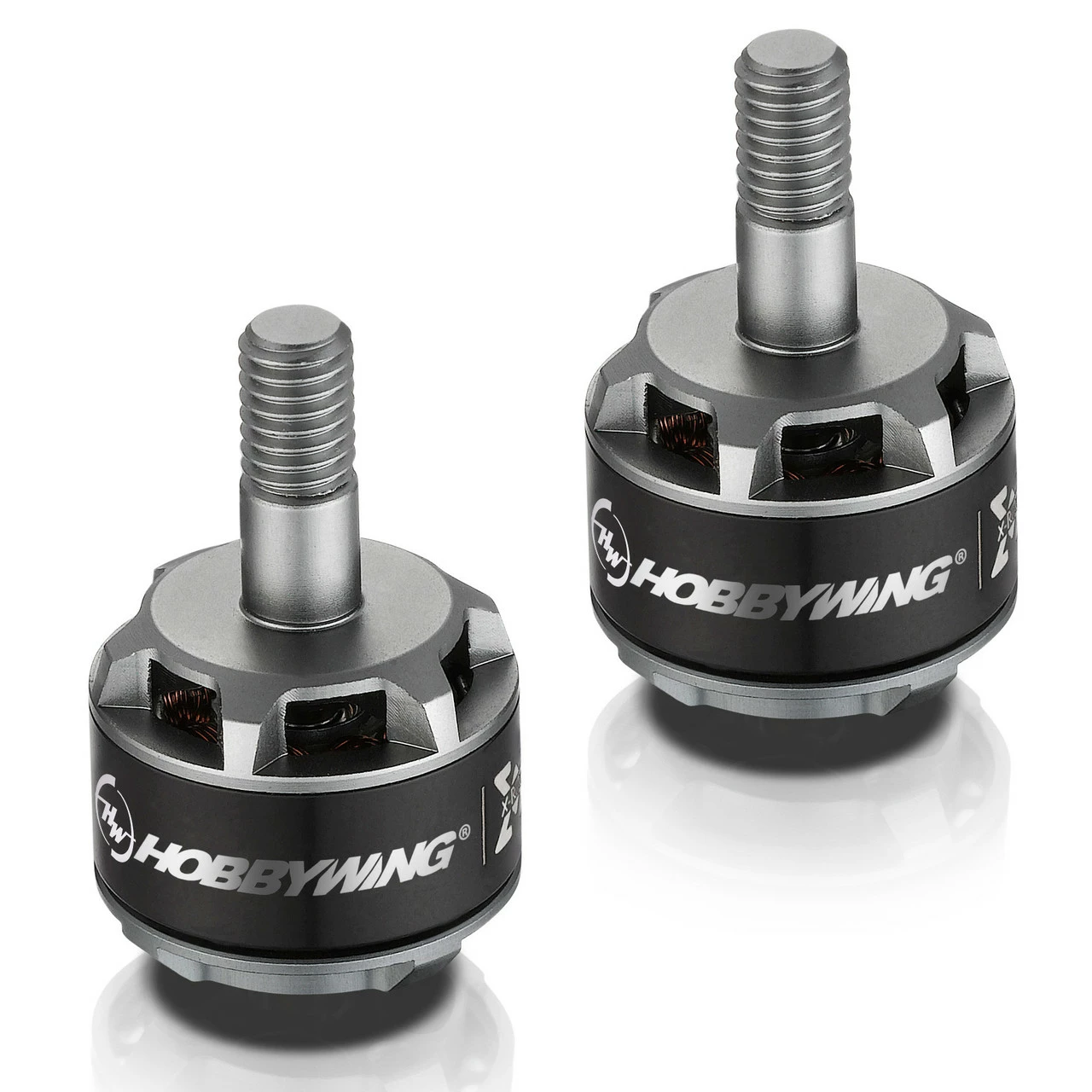

HBW30405305 HobbyWing XRotor 1306 Motor For FPV Drone Racing

HBW30405305 HobbyWing XRotor 1306 motor for FPV Drone Racing



Features

• Super thin disc-type structure with a low center of gravity guarantees better control feel.
• Concave anti-skid teeth together with the lock-up screw at the bottom effectively prevent rotor
  from moving or losing and strengthens reliability of the motor.
• One-piece eight-bladed centrifugal fan greatly reduces the operating temperature of the motor.
• Super light weight
• Top Quality Components – Special 240℃ heat-resistant windings (after vacuum dip coating treatment) can stand high, surge current.
• N54 super magnets guarantee high torque output.
• Super thin (0.2mm) silicon sheets imported from Japan guarantee low (power) loss, less heat generation but high magnetic permeability.
• Dedicated 4mm bearings (the thickness is enlarged by 33% comparing to the regular 3mm bearings on the market) imported from Japan guarantee great load-bearing capacity and impact-resistance.

Specifications

• LiPo Cell: 4s
• Max Continuous Current / Power : –
• Stator Diameter/Thickness: –
• Slot/Plot Count: –
• Motor/Shaft Diameter: –
• Motor Length (w/o, w/ Shaft): –
• Best match w/ Xrotor Micro 4in1 12A or above
• Weight: –

P/N	30405305	30405306
KV	4000	4500
No-Load Current(A/10V)	1.2A	1.4A
Motor Resistance	0.062Ω	0.047Ω
Recommend Prop. type	5045 3-bladed Prop. 6040 2-bladed Prop.	5045 3-bladed Prop. 6040 2-bladed Prop.
