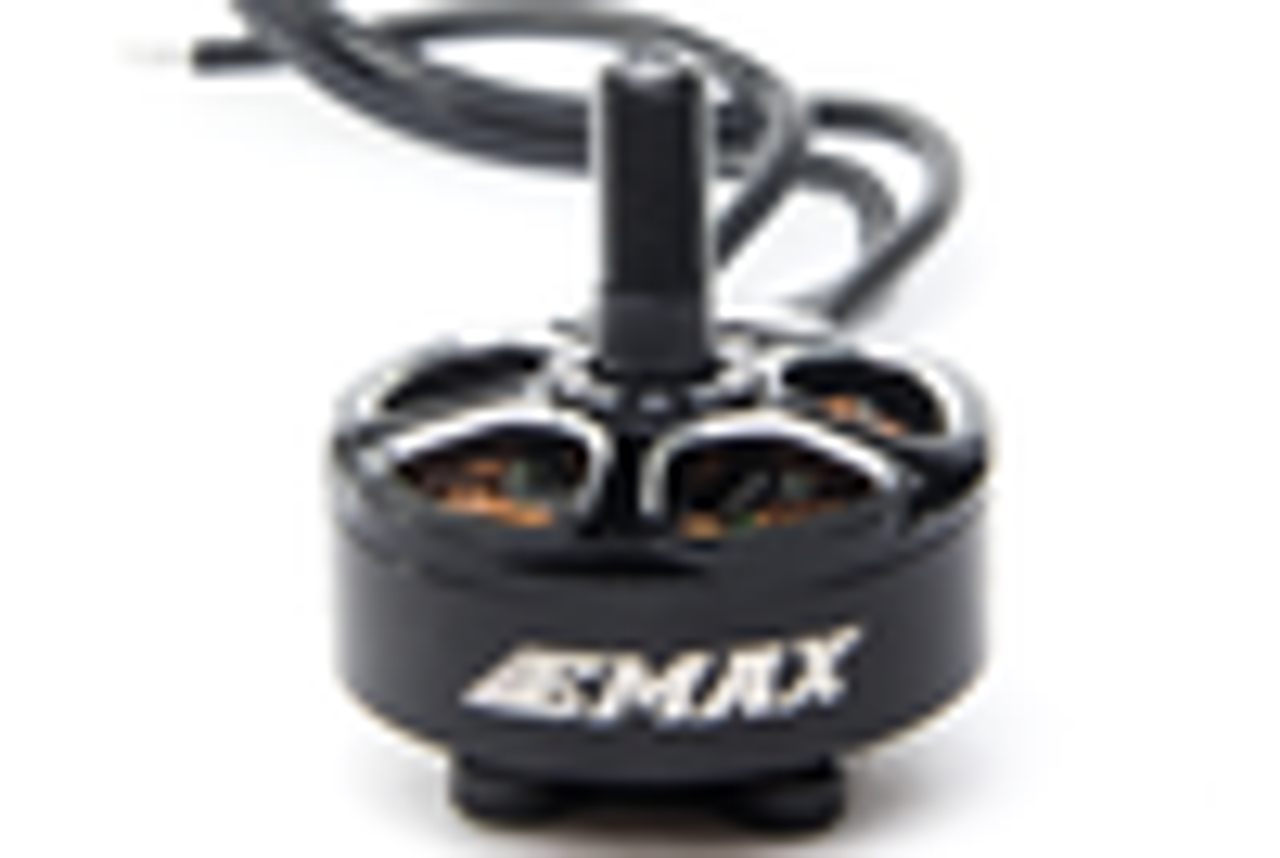

EMAX-LS2206 EMAX LS2206 2700KV LITE SPEC BRUSHLESS MOTOR (CW THREAD)

EMAX-LS2206 EMAX LS2206 2700KV LITE SPEC BRUSHLESS MOTOR (CW THREAD)



Key Features:

• NSK high efficiency bearings
• 0.15mm silicon steel laminations
• Aluminum shaft with hardened steel core
• 1.8mm N48SH ARC Magnets
• Screw capture for bell. Easy to service
• Stealth black anodized color, with silver beveled edges
• Reduced base size. Lower the weight and easier to make sure not to short your wires with long screws.
• 16mm x 16mm mounting holes ( 19×16 is the past) future frames don’t need to have slotted mounting holes.
• 120mm 18AWG wire. Testing has shown a 5% increase in performance with thicker gauged wire. Compared from 20AWG wire.
• New bell design with upper and lower beam support to reduce damage from collapse of impacts.

Included in the Box:

• • 1x motor
• • 5x 3mm arm mounting screws
• • 5x 4mm arm mounting screws
• • 1x replacement bell housing screw
• • 1x replacement bell housing washer
• • 1x EMAX Stickers
