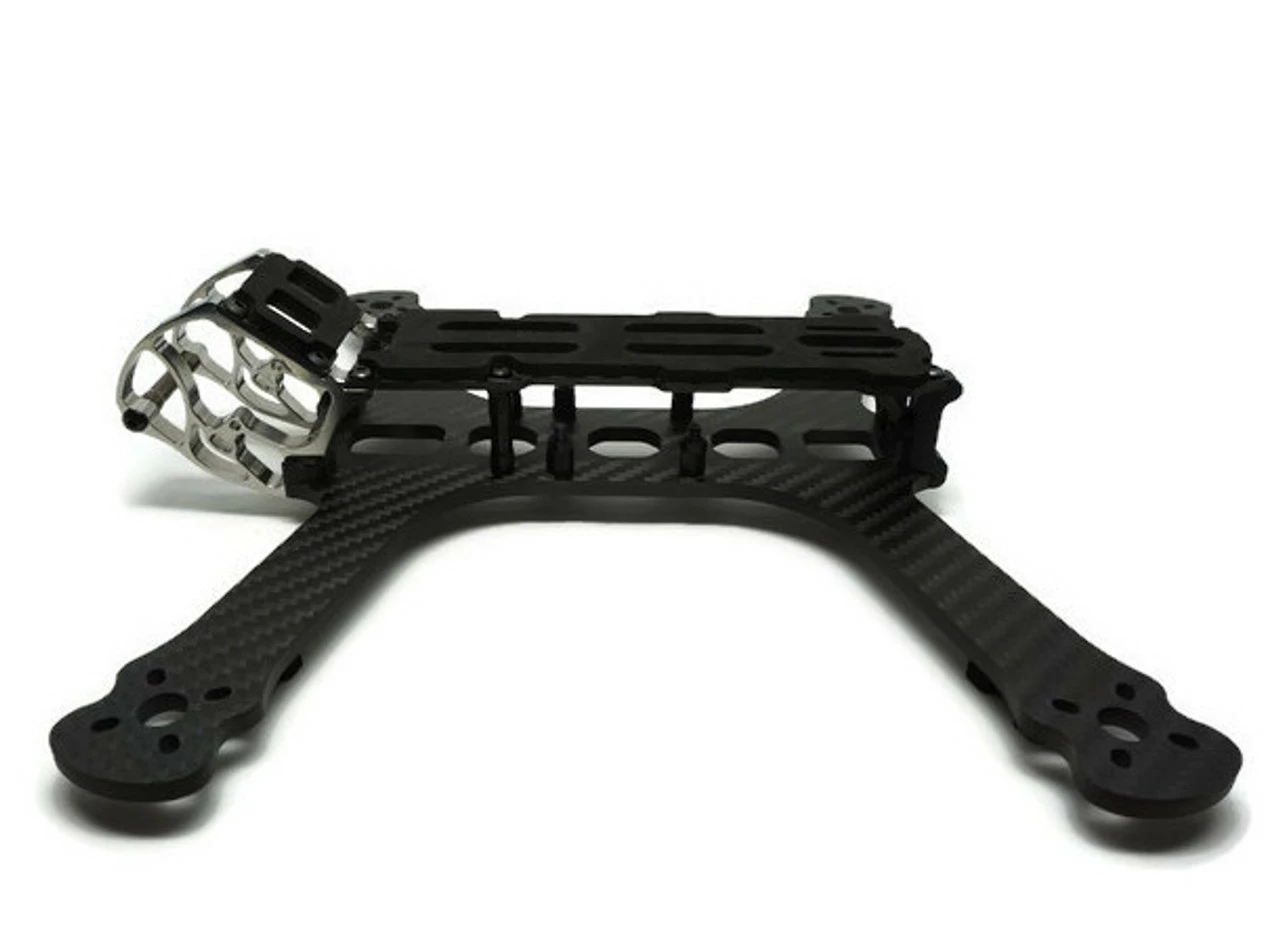

ARMATTAN ARACHAMTILR6 Chameleon Ti LR 6 Inch Frame

ARACHAMTILR6 Chameleon Ti LR 6 inch Frame



Included

Titanium:
2x Camera-cage braces

Aluminum:
1x 28.6mm front standoff (silver)
2x 22mm center standoffs
2x Rear standoffs (black)

Hardware:
5x 4mm button-head M3 bolts
10x 6mm button-head M3 bolts
8x 10mm button-head M3 bolts
3x 12mm button-head M3 12.9 grade steel bolts
5x 16mm button-head M3 bolts
6x 8mm M2 cup-head (camera) bolts

Nylon:
5x 6mm standoffs
5x nuts

Carbon Fiber:
1x 2mm Top extended (LiPo) plate
1x 1.5mm HD Cam plate
1x 2mm Rear VTX plates (Standard and TBS)
1x 4mm Extended main plate for 6 inch
1x 4mm Shim plate

Other:
1x Lipo strap
1x Extended LiPo foam pad
1x HD camera foam pad
4x Dog-bone landing pads
1x Molded rubber SMA grommet (included with standard VTX plate)
3x Molded rubber antenna tube mounts (included with standard VTX plate)



Chameleon 6 LR Specs
Frame Weight	142g
Motor to Motor	264mm
Frame Shape	Compressed X
Main Plate Thickness	4mm
Hardware	Titanium Cage Aluminum Standoffs
Motor Mount Pattern	22xx
Center Stack Mount	30.5mm
FPV Camera Mount	28.5mm (Swift v2, Arrow v3, etc)
FPV Camera Tilt	25-60 degrees
Max Stack Height	22mm
Warrantied Parts	All
Recommended Components
Motor Size	2306/1800kv
ESCs	30a
Prop Size	6″
LiPo	4-6S/1800-2200mAh
